NORDOCK® Vehicle Restraints
NORDOCK® Vehicle Restraints -
NORDOCK® AR-10,000 Impact Restraint, AR-20,000 Impact Restraint, The NORDOCK® PIT-HOOK™ Vehicle Restraint, The NORDOCK® TRUCK-LOCK® Series Automatic Vehicle Restraints, and The NORDOCK® TRUCK-LOCK® Series Manual Vehicle Restraint
Loading Dock Vehicle Restraints play a critical role in preventing potential dangers such as trailer tip-overs, landing gear collapse, trailer creep or separation, or unprepared departures. Speed-Tech Equipment provides several types of restraint solutions to meet the different needs and safety measures that are required, including Mechanical, Hydraulic Low-Profile, and Under Leveler Restraints. By implementing appropriate restraints, businesses can reduce the risk of accidents.
Nordock AR-10,000 Smart-Hook
Nordock AR-20,000 Sm art-Hook
Pit Hook
The NORDOCK® PIT-HOOK™ Vehicle Restraint is the non-impact invisible alternative which is also designed to allow the unit to be mounted under the loading dock pit away from any debris.
Automatic Vehicle Restraint
The NORDOCK® TRUCK-LOCK® Series Automatic Vehicle Restraints are a superior automatic system designed to secure a truck at the loading dock by connecting the rear impact guard with a large barrier.

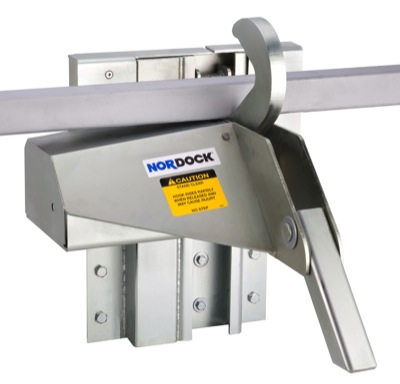

Manual Vehicle Restraint
The NORDOCK® TRUCK-LOCK® Series Manual Vehicle Restraint is the cost effective alternative designed to lock the truck by a manually operated system.
Nordock AR-10,000 Smart-Hook
Automatically adjusts to trailer height for proficient and safe loading and unloading.
The AR-10,000 model is an automatic vehicle restraint that is designed to offer trouble-free operation and reliability. Preventing unscheduled departure and ensuring safe loading operations, to keep constant contact with the rear impact guard.
AR-10,000 Smart-Hook Truck Restraint Features

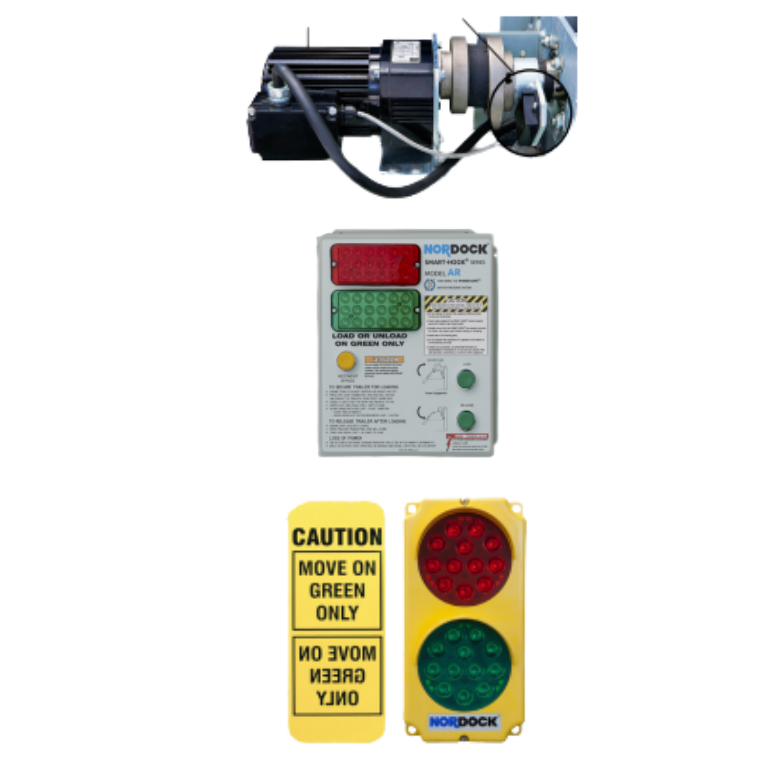

- Power-Safe System Provides Full Power for over 24 hours, Safe Release, Engagement, and uninterrupted inside and outside communication lights
- IP66-rated waterproof motor/Gearbox
- Impact-Guard Design will eliminate damage caused by trailer impact
- Upward Biased Housing and hooks that keep constant contact with the rear impact guard
- Functions are automatically reset after power is restored
- Large rotating Hook Design keeps Trailer secure
- Solid state control system with diagnostics
- A large rotating hook design helps prevent unscheduled trailer departure, creep, and tip over
- Automatically adjusts to trailer movement during loading, keeping constant contact with the rear impact guard
- Housing automatically positions itself to the correct height by the incoming trailer
- Solid state control system
- Dock leveler interlock capable
- Low-profile housing lowers to 9” off-grade
- Auto-reversing hook to prevent damage from incoming trucks
- NEMA 12 panel with Steel Enclosure & operator instructions on the cover
- Above-ground storage keeps housing clear of snow, ice, and debris
- Can handle 32,000 lbs of restraining force and 100,000 lbs of mounting force
- 5-year structural warranty
- Dual Zinc Dichromate Finish
AR-10,000 Optional Equipment
- Cantilever extension mounting bracket
- Cast-In Wall Mounting Plate
- Integrated LOGI-Smart control systems
- Weather Tight Panel Enclosures NEMA 4
- Keyed override switch
- Super-Com Signal Light System
Nordock AR-20,000 Smart-Hook
Automatically adjusts to trailer height for proficient and safe loading and unloading.
The AR-20,000 model offers a premium design for vehicle restraint that has a patented NO-PINCH auxiliary lock and power safe battery reserve system. The IMPACT-GUARD front carriage reinforcement will provide protection from damage that could be caused by incoming trailers.
AR-20,000 Smart-Hook Truck Restraint Features
- Power-Safe System Provides Full Power for over 24 hours, Safe Release, Engagement, and uninterrupted inside and outside communication lights
- IP66-rated waterproof motor/Gearbox
- Impact-Guard Design will eliminate damage caused by trailer impact
- Upward Biased Housing and hooks that keep constant contact with the rear impact guard
- Functions are automatically reset after power is restored
- Large rotating Hook Design keeps Trailer secure
- Solid state control system with diagnostics
- A large rotating hook design helps prevent unscheduled trailer departure, creep, and tip over
- Automatically adjusts to trailer movement during loading, keeping constant contact with the rear impact guard
- Housing automatically positions itself to the correct height by the incoming trailer
- Solid state control system
- Dock leveler interlock capable
- Low-profile housing lowers to 9” off-grade
- Auto-reversing hook to prevent damage from incoming trucks
- NEMA 12 panel with Steel Enclosure & operator instructions on the cover
- Above-ground storage keeps housing clear of snow, ice, and debris
- Can handle 32,000 lbs of restraining force and 100,000 lbs of mounting force
- 5-year structural warranty
- Dual Zinc Dichromate Finish
AR-20,000 Optional Equipment
- Cantilever extension mounting bracket
- Cast-In Wall Mounting Plate
- Integrated LOGI-Smart control systems
- Weather Tight Panel Enclosures NEMA 4
- Keyed override switch
- Super-Com Signal Light System
Nordock Pit Hook
The non-impact invisible alternative
Features
- Non-impact loading dock vehicle restraints allow the unit to be mounted under the dock pit, away from debris
- Offers unobstructed delivery for hydraulic lift gate trailers and smaller delivery vehicles
- Maintains a tight hold on the rear impact guard, virtually eliminating trailer creep
- The design allows for easy snow removal and a clean loading dock appearance
- Exceeds 35,000 lbs. of restraining force
- Helps eliminate landing gear collapse by keeping the trailer tight to the bumpers
- NEMA 12 control box with PLC controls
- Working range of down to 9” above grade up to 30” above grade
- Hook floats with a trailer during loading
Nordock Pit Hook Options
- Integrated control panel designed to operate all loading docks
- NEMA 4 watertight enclosure
- The dock leveler stored the interlock
- LED red/green inside/outside lights
Nordock Automatic Loading Dock Vehicle Restraints
The TRUCK-LOCK® Series Automatic Vehicle Restraints are a superior automatic system. It is designed to secure a truck at the loading dock by connecting the rear impact guard with a large barrier. During the loading operations, a positive contact is maintained by the HYDRA-FLOAT™ barrier that automatically adjusts to various truck heights. Once the rear impact guard is connected, a barrier-mounted sensor provides positive communication.
With a push of the button, the operator activates and stores the barrier.
While in the stored position, the low-profile barrier is out of the way from incoming trucks while shielding the working parts from debris and bad weather.
Accessories
- LED inside and outside lights (included with ATL-900)
- Cantilever extension mounting bracket
- Cast-in mounting plate
- Integrated control panel
Nordock Manual Loading Dock Vehicle Restraints
The cost-effective alternative
By locking the truck with a 32,000 lb. restraining force during the loading/unloading process, the NORDOCK®TRUCK-LOCK® Series of Vehicle Restraints improves safety.
The NORDOCK® MTL Model, designed to lock the truck by connecting the rear impact guard with a large barrier,r is an affordable manually operated system.
Positive communication that the rear impact guard is connected is transmitted to the operator by the barrier-mounted sensor on the Model MTL-300. The spring-loaded barrier adjusts automatically to the different truck heights and sustains positive contact throughout loading operations.
The low-profile barrier/housing elevates to a height of 30” to restrain all types of trucks. It stores at only 9” high, and in this position, the housing/barrier is clear of incoming trucks, which protects the working parts from debris and weather conditions.
Click the Links Below to View More Information
Accessories
- Integrated control panel
- Cast-in wall mounting plate
- LED inside and outside light
- Cantilever extension mounting bracket
