Loading Dock Seals

NORDOCK Dock Seals: STP Series, STC Series, FP Series, FC Series Dock Seals

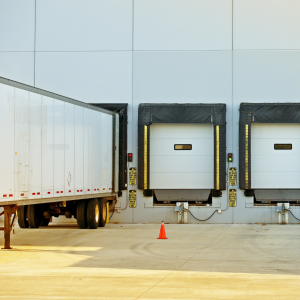

NORDOCK® Dock Seals and Shelters are specifically designed to improve loading dock productivity and provide a safer environment by keeping out inclement weather, dust, and insects. In addition, they also help save energy costs and increase security. These seals and shelters are available in a wide range of styles and fabrics.

Dock Seals: We offer the STP Series, the STC Series, the FP Series, and the FC Series of NORDOCK® Dock Seals.

nordock guarantee

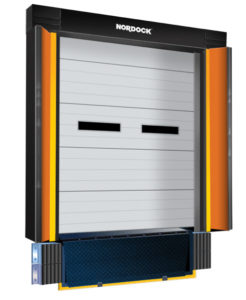

NORDOCK Dock Seals: STP SeriesDock Seals

STP Series Trailer Door Gap Compression Seal

The NORDOCK Seal-Tite STP Series Dock Seal provides effective protection for personnel and freight while loading and unloading trailers through its design that forms a tight seal against the trailer doors. Insects, dust, and inclement weather is kept out by the truck backing into the head and side pads. In addition to creating a safer and more productive environment, it also saves on energy costs and increases security. Not only does the unique design close the gap formed from the swing out trailer doors, it also decreased the pressure on building walls and permits unobstructed access into the trailer.

  • High-tear abrasion resistant fabrics with double lock stitched seams
  • Unique side pad design captures and closes off the air gap created by swing out trailer doors
  • 99% memory foam core side frame with condensation drainage system
  • Kiln dried pressure treated superior grade backing and head frame lumber
  • Full height yellow guide stripes on inside face and for accurate truck positioning
  • Better trailer access with less pressure on building wall than conventional foam pad seals
  • Most suitable for door opening up to 9’ side x up to 9’ high
  • Fixed head pad provides maximum seal
  • Galvanized mounting hardware included

Seal-Tite Dock Shelter Options:

  • 50 oz. WT 90 fabric
  • 22 oz. and 40 oz. Vinyl
  • 4” or 8” exposure wear pleats
  • Tapered Sides for decline/incline approach

Seal-Tite Accessories:

  • Dock levelers
  • Steel spring, steel face, and laminated bumpers
  • Fall-Stop barrier gate
  • Vehicle restraints
  • Wheel chocks
  • Loading dock lights

NORDOCK Dock Seals: STC SeriesDock Seals

STP Series Trailer Door Gap Compression Seal

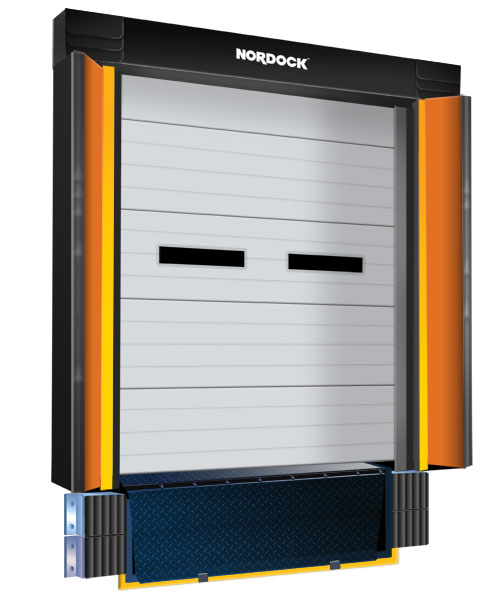

STC Trailer Door Gap Compression Seal

The NORDOCK Seal-Tite STC Series dock seal, designed to form a tight seal against the trailer door, effectively provides protection for cargo and personnel while loading and unloading trailers. Insects, dust, and bad weather are kept our by the truck backing into the head and side pads to create a safer and more productive environment. It also saves energy costs and increases security. The exclusive design closes the gap created formed from the swing out trailer doors, permits easier access into the trailer, and decreases the pressure on the building walls.

  • Unique side pad design captures and closes off the air gap created by swing out trailer doors
  • Fixed head pad provides maximum seal face of vertical pads for accurate truck positioning
  • High-tear abrasion resistant fabrics with double lock stitched seams
  • Better trailer access with less pressure on building wall than conventional foam pad seals
  • Kiln dried pressure treated superior grade backing and head frame lumber
  • 99% memory foam core side frame with condensation drainage
  • Most suitable for door openings up to 9 feet wide x up to 10 feet high
  • Galvanized mounting hardware included

Seal-Tite Dock Shelter Options:

  • 55 oz. WT 90 Fabric
  • 22 oz. & 40 oz. Vinyl
  • Tapered Sides for decline/incline approach
  • 4” or 8’exposre wear pleats
  • Galvanized steel backer

Seal-Tite Accessories:

  • Steel spring, steel face, and laminated bumpers
  • Vehicle restraints
  • Dock levelers
  • Fall-Stop barrier gate
  • Galvanized steel canopies
  • Loading dock lights
  • Wheel chocks

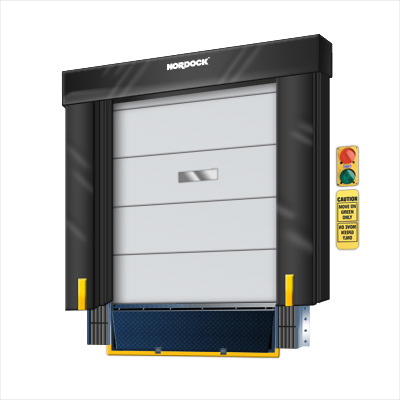

NORDOCK Dock Seals: FP Series Dock Seals

STP Series Trailer Door Gap Compression Seal

Total Trailer Access with a Maximum Weathertight Seal

 The NORDOCK FP Series Dock Seals effectively protects personnel and cargo during loading and unloading. A tight seal between dock and trailer is provided by the fixed header and the memory foam core. This provides protection from bad weather, insect filtration, and dirt. These dock seals are available for door openings up to 9’ x 9’.



FP Series Dock Seal Features:

  • Improves safety and productivity while reducing costs by providing protection from inclement, weather, dirt, and insects
  • Fixed head pad provides maximum seal
  • 99% memory foam core for extended life
  • High-tear abrasion resistant fabrics with double lock stitched seams
  • Kiln dried superior grade backing lumber
  • Most suitable for door openings up to 9 feet wide x 9 feet high
  • Full height yellow guide stripes for accurate truck positioning
  • Standard 22 oz. vinyl
  • Pressure treated lumbar
  • Condensation drainage system
  • Galvanized mounting hardware included

FP Series Dock Seal Options:

  • 40 oz. Vinyl
  • Wear pleats available in 4”, 6”, and 8”
  • Adjustable head curtain
  • 50 oz. WT-90 fabric
  • Fire retardant foam and fabric
  • Galvanized steel canopies
  • Half or full foam filled curtain
  • Double layer wear face
  • Tapered side for incline/decline approach
  • Wide range of shape projections, bevels, and tapers
  • Z-Lip door gap seal
  • Longer curtains



Stationary Head Pad Dock Seal Accessories:

  • Fall-Stop barrier gate
  • Truck-Lock vehicle restraint
  • Dock levelers
  • Galvanized steel canopies
  • Steel spring, steel face, laminated, and molded bumpers
  • Wheel chocks
  • Loading dock lights

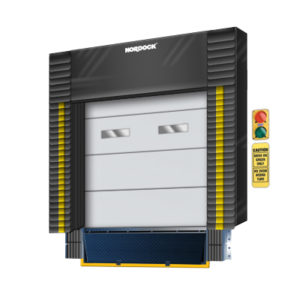

NORDOCK Dock Seals: FC Series Dock Seals

STP Series Trailer Door Gap Compression Seal

Total Trailer Access with a Maximum Weathertight Seal

 The NORDOCK FP Series Dock Seals effectively protects personnel and cargo during loading and unloading. A tight seal between dock and trailer is provided by the fixed header and the memory foam core. This provides protection from bad weather, insect filtration, and dirt. These dock seals are available for door openings up to 9’ x 9’.



FP Series Dock Seal Features:

  • Improves safety and productivity while reducing costs by providing protection from inclement, weather, dirt, and insects
  • Fixed head pad provides maximum seal
  • 99% memory foam core for extended life
  • High-tear abrasion resistant fabrics with double lock stitched seams
  • Kiln dried superior grade backing lumber
  • Most suitable for door openings up to 9 feet wide x 9 feet high
  • Full height yellow guide stripes for accurate truck positioning
  • Standard 22 oz. vinyl
  • Pressure treated lumbar
  • Condensation drainage system
  • Galvanized mounting hardware included

FP Series Dock Seal Options:

  • 40 oz. Vinyl
  • Wear pleats available in 4”, 6”, and 8”
  • Adjustable head curtain
  • 50 oz. WT-90 fabric
  • Fire retardant foam and fabric
  • Galvanized steel canopies
  • Half or full foam filled curtain
  • Double layer wear face
  • Tapered side for incline/decline approach
  • Wide range of shape projections, bevels, and tapers
  • Z-Lip door gap seal
  • Longer curtains



Stationary Head Pad Dock Seal Accessories:

  • Fall-Stop barrier gate
  • Truck-Lock vehicle restraint
  • Dock levelers
  • Galvanized steel canopies
  • Steel spring, steel face, laminated, and molded bumpers
  • Wheel chocks
  • Loading dock lights
